Salient Features
All Foot Pumps are tested fully prior to despatch likewise smooth working of foot pump, perfect working of pressure guage, etc.

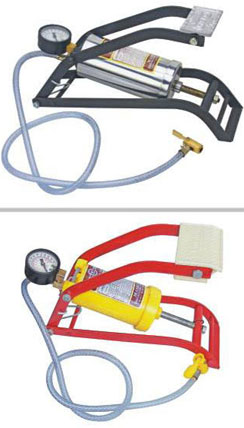

MASKO Brand Foot Air Pump (Steel Body) with 1 mtr. long Air fill rubber pipe & with extra washer, spring, nozzle bush and special brass adapter (Nipple) for cycle.

Also available with Nylon body, in two sizes BIG and SMALL.
  1. It is handy, portable, very less in weight and easy in operations.
  2. It has steel body to give longer life.
  3. Pump is built in with air pressure gauge so checking of pressure in wheel before and after filling air is possible.
  4. It increases life of tyre and saves fuel.
  5. It has self lubricating parts and hence low maintenance.
  6. Standard 'O' ring readily available in market is fitted.
  7. It could prove to be your best friend in unforeseen circumstances.

TECHNICAL SPECIFICATIONS
TYPE OF FOOT PUMP STEEL BODY NYLON BODY NYLON BODY
(Small Size)
Pump Size 350 x 105 x 100 mm 325 x 105 x 100 mm 275 x 85 x 95 mm
Pump Size (with box) 355 x 115 x 115 mm 355 x 115 x 115 mm 280 x 110 x 100 mm
Pump Weight 2.350 Kgs. 1.550 Kgs. 1.100 Kgs.
Cylinder inside Dimensions 70 mm Dia.-145 mm long 62 mm Dia.-122 mm long 49 mm Dia.-106 mm long
Max. Stroke Length 118 mm 100 mm 89 mm
Max. Air volume delivered / stroke 454 cm³ 305 cm³ 170 cm³
Pressure Range 0-10.6 Kg. / cm²
(0 to 150 Lb / inch²) 		0-10.6 Kg. / cm²
(0 to 150 Lb / inch²)		 0-10.6 Kg. / cm²
(0 to 150 Lb / inch²)
Max. Error in gauge reading ± 0.140 Kg. / cm²
(± 2 Lb. / inch²)		 ± 0.140 Kg. / cm²
(± 2 Lb. / inch²)		 ± 0.140 Kg. / cm²
(± 2 Lb. / inch²)
Note: Dimensions & Designs shown above are subject to alteration or change without prior notice.
